cs_face_viscosity.c File Reference

Face viscosity. More...

#include "cs_defs.h"
#include <assert.h>
#include <errno.h>
#include <stdio.h>
#include <stdarg.h>
#include <string.h>
#include <math.h>
#include <float.h>
#include "bft_error.h"
#include "bft_mem.h"
#include "bft_printf.h"
#include "cs_math.h"
#include "cs_blas.h"
#include "cs_halo.h"
#include "cs_halo_perio.h"
#include "cs_internal_coupling.h"
#include "cs_log.h"
#include "cs_mesh.h"
#include "cs_field.h"
#include "cs_field_pointer.h"
#include "cs_gradient.h"
#include "cs_gradient_perio.h"
#include "cs_ext_neighborhood.h"
#include "cs_mesh_quantities.h"
#include "cs_parall.h"
#include "cs_parameters.h"
#include "cs_prototypes.h"
#include "cs_timer.h"
#include "cs_face_viscosity.h"

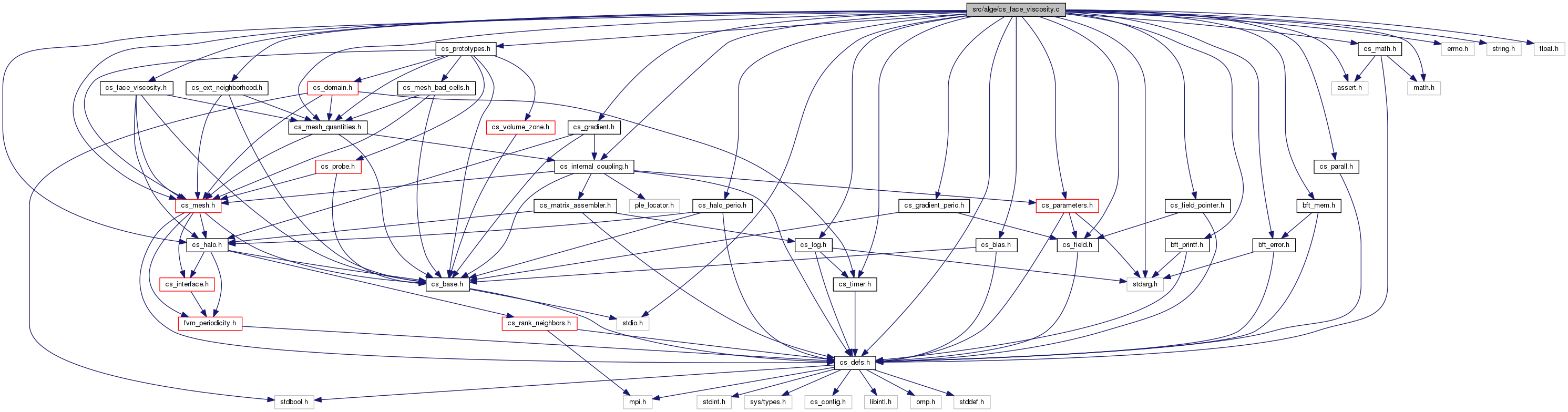

Include dependency graph for cs_face_viscosity.c:

Functions
void	viscfa (const cs_int_t *const visc_mean_type, cs_real_t c_visc[], cs_real_t i_visc[], cs_real_t b_visc[])
void	vistnv (const cs_int_t *const visc_mean_type, cs_real_6_t c_visc[], cs_real_33_t i_visc[], cs_real_t b_visc[])
void	vitens (cs_real_6_t c_visc[], const cs_int_t *const iwarnp, cs_real_2_t weighf[], cs_real_t weighb[], cs_real_t i_visc[], cs_real_t b_visc[])
void	cs_face_viscosity (const cs_mesh_t *m, const cs_mesh_quantities_t *fvq, const int visc_mean_type, cs_real_t *restrict c_visc, cs_real_t *restrict i_visc, cs_real_t *restrict b_visc)
	Compute the diffusion velocity at faces. More...
void	cs_face_anisotropic_viscosity_vector (const cs_mesh_t *m, const cs_mesh_quantities_t *fvq, const int visc_mean_type, cs_real_6_t *restrict c_visc, cs_real_33_t *restrict i_visc, cs_real_t *restrict b_visc)
	Compute the equivalent tensor viscosity at faces for a 3x3 symetric tensor. More...
void	cs_face_anisotropic_viscosity_scalar (const cs_mesh_t *m, const cs_mesh_quantities_t *fvq, cs_real_6_t *restrict c_visc, const int iwarnp, cs_real_2_t *restrict weighf, cs_real_t *restrict weighb, cs_real_t *restrict i_visc, cs_real_t *restrict b_visc)
	Compute the equivalent viscosity at faces for a 3x3 symetric tensor, always using a harmonic mean. More...

Detailed Description

Face viscosity.

Function Documentation

cs_face_anisotropic_viscosity_scalar()

void cs_face_anisotropic_viscosity_scalar	(	const cs_mesh_t *	m,
		const cs_mesh_quantities_t *	fvq,
		cs_real_6_t *restrict	c_visc,
		const int	iwarnp,
		cs_real_2_t *restrict	weighf,
		cs_real_t *restrict	weighb,
		cs_real_t *restrict	i_visc,
		cs_real_t *restrict	b_visc
	)

Compute the equivalent viscosity at faces for a 3x3 symetric tensor, always using a harmonic mean.

Parameters

[in]	m	pointer to mesh
[in]	fvq	pointer to finite volume quantities
[in]	c_visc	cell viscosity symmetric tensor
[in]	iwarnp	verbosity
[out]	weighf	inner face weight between cells i and j and
[out]	weighb	boundary face weight
[out]	i_visc	inner face viscosity (times surface divided by distance)
[out]	b_visc	boundary face viscosity (surface, must be consistent with flux BCs)

cs_face_anisotropic_viscosity_vector()

void cs_face_anisotropic_viscosity_vector	(	const cs_mesh_t *	m,
		const cs_mesh_quantities_t *	fvq,
		const int	visc_mean_type,
		cs_real_6_t *restrict	c_visc,
		cs_real_33_t *restrict	i_visc,
		cs_real_t *restrict	b_visc
	)

Compute the equivalent tensor viscosity at faces for a 3x3 symetric tensor.

Parameters

[in]	m	pointer to mesh
[in]	fvq	pointer to finite volume quantities
[in]	visc_mean_type	method to compute the viscosity at faces: 0: arithmetic 1: harmonic
[in]	c_visc	cell viscosity symmetric tensor
[out]	i_visc	inner face tensor viscosity (times surface divided by distance)
[out]	b_visc	boundary face viscosity (surface, must be consistent with flux BCs)

cs_face_viscosity()

void cs_face_viscosity	(	const cs_mesh_t *	m,
		const cs_mesh_quantities_t *	fvq,
		const int	visc_mean_type,
		cs_real_t *restrict	c_visc,
		cs_real_t *restrict	i_visc,
		cs_real_t *restrict	b_visc
	)

Compute the diffusion velocity at faces.

Compute the diffusion velocity at faces. i_visc,b_visc = viscosity*surface/distance, homogeneous to a rate of flow in kg/s.

i_visc,b_visc = viscosity*surface/distance, homogeneous to a rate of flow in kg/s.

Please refer to the viscfa section of the theory guide for more informations.

Remarks

: a priori, no need of reconstruction techniques (to improve if necessary).

Parameters

[in]	m	pointer to mesh
[in]	fvq	pointer to finite volume quantities
[in]	visc_mean_type	method to compute the viscosity at faces: 0 arithmetical 1 harmonic
[in]	c_visc	cell viscosity (scalar)
[out]	i_visc	inner face viscosity (times surface divided by distance)
[out]	b_visc	boundary face viscosity (surface, must be consistent with flux BCs)

viscfa()

void viscfa	(	const cs_int_t *const	visc_mean_type,
		cs_real_t	c_visc[],
		cs_real_t	i_visc[],
		cs_real_t	b_visc[]
	)

vistnv()

void vistnv	(	const cs_int_t *const	visc_mean_type,
		cs_real_6_t	c_visc[],
		cs_real_33_t	i_visc[],
		cs_real_t	b_visc[]
	)

vitens()

void vitens	(	cs_real_6_t	c_visc[],
		const cs_int_t *const	iwarnp,
		cs_real_2_t	weighf[],
		cs_real_t	weighb[],
		cs_real_t	i_visc[],
		cs_real_t	b_visc[]
	)
