cs_advection_field.c File Reference

#include "cs_defs.h"
#include <assert.h>
#include <ctype.h>
#include <float.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <bft_mem.h>
#include "cs_boundary_zone.h"
#include "cs_evaluate.h"
#include "cs_field.h"
#include "cs_log.h"
#include "cs_math.h"
#include "cs_mesh_location.h"
#include "cs_param_cdo.h"
#include "cs_reco.h"
#include "cs_volume_zone.h"
#include "cs_xdef.h"
#include "cs_zone.h"
#include "cs_advection_field.h"

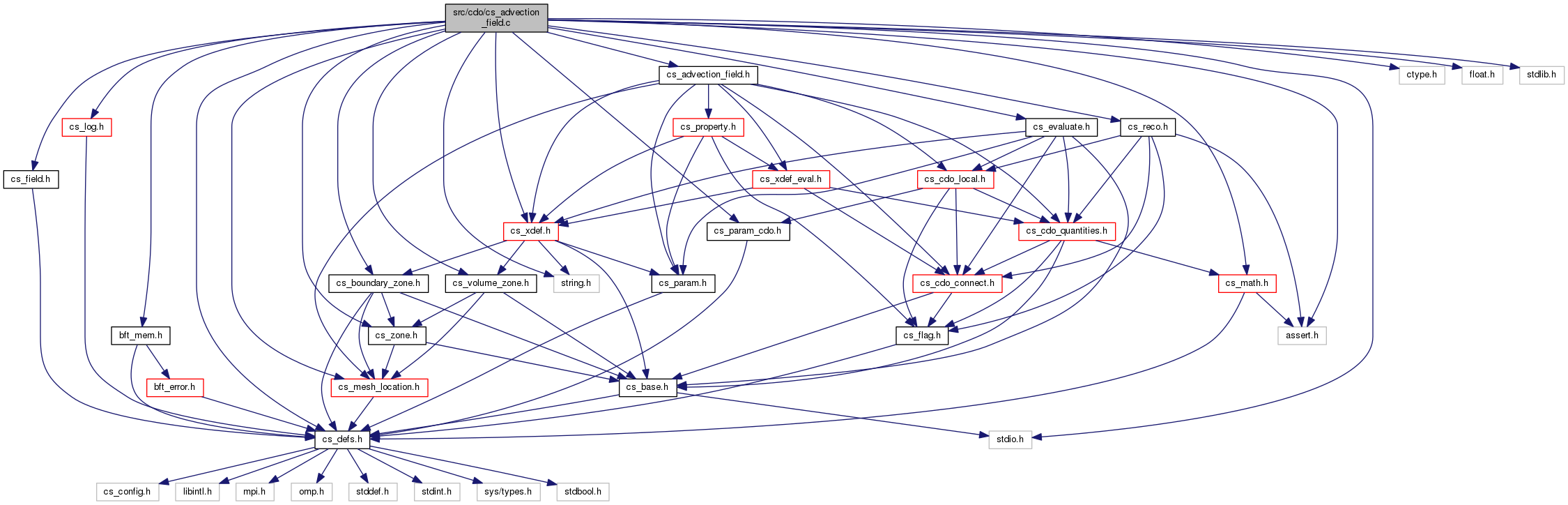

Include dependency graph for cs_advection_field.c:

Macros
#define	_dp3   cs_math_3_dot_product
#define	CS_ADVECTION_FIELD_DBG   0
#define	CS_ADVECTION_FIELD_ID_NOT_SET   -1
#define	CS_ADVECTION_FIELD_ID_TO_BE_SET   -2

Functions
static int	_get_dim_def (const cs_adv_field_t *adv)
	Return the required dimension for the definition of an advection field. More...
static void	_fill_uniform_boundary_flux (const cs_cdo_quantities_t *const cdoq, const cs_adjacency_t *const f2e, const cs_adjacency_t *const e2v, cs_lnum_t bf_id, cs_real_t face_flux, cs_real_t *fluxes)
	Update the contribution of the flux. More...
static void	_cw_fill_uniform_boundary_flux (const cs_cell_mesh_t *cm, short int f, cs_real_t face_flux, cs_real_t *fluxes)
	Update the contribution of the flux for each vertex. More...
void	cs_advection_field_set_shared_pointers (const cs_cdo_quantities_t *quant, const cs_cdo_connect_t *connect)
	Set shared pointers to main domain members. More...
int	cs_advection_field_get_n_fields (void)
	Get the number of allocated cs_adv_field_t structures. More...
cs_adv_field_t *	cs_advection_field_by_name (const char *name)
	Search in the array of advection field structures which one has the name given in argument. More...
cs_adv_field_t *	cs_advection_field_by_id (int id)
	Search in the array of advection field structures which one has the id given in argument. More...
cs_adv_field_t *	cs_advection_field_add_user (const char *name)
	Add and initialize a new user-defined advection field structure. More...
cs_adv_field_t *	cs_advection_field_add (const char *name, cs_advection_field_status_t status)
	Add and initialize a new advection field structure. More...
void	cs_advection_field_destroy_all (void)
	Free all alllocated cs_adv_field_t structures and its related array. More...
bool	cs_advection_field_check_name (const cs_adv_field_t *adv, const char *ref_name)
	Check if the given advection field has the name ref_name. More...
void	cs_advection_field_log_setup (void)
	Print all setup information related to cs_adv_field_t structures. More...
void	cs_advection_field_set_option (cs_adv_field_t *adv, cs_advection_field_key_t key)
	Set optional parameters related to a cs_adv_field_t structure. More...
void	cs_advection_field_def_by_value (cs_adv_field_t *adv, cs_real_t *values)
	Define the value of a cs_adv_field_t structure. More...
void	cs_advection_field_def_by_analytic (cs_adv_field_t *adv, cs_analytic_func_t *func, void *input)
	Define a cs_adv_field_t structure thanks to an analytic function. More...
void	cs_advection_field_def_by_array (cs_adv_field_t *adv, cs_flag_t loc, cs_real_t *array, bool is_owner, cs_lnum_t *index)
	Define a cs_adv_field_t structure thanks to an array of values. More...
void	cs_advection_field_def_by_field (cs_adv_field_t *adv, cs_field_t *field)
	Define a cs_adv_field_t structure thanks to an array of values. More...
void	cs_advection_field_def_boundary_flux_by_value (cs_adv_field_t *adv, const char *zname, cs_real_t normal_flux)
	Define the value of the boundary normal flux for the given cs_adv_field_t structure. More...
void	cs_advection_field_def_boundary_flux_by_analytic (cs_adv_field_t *adv, const char *zname, cs_analytic_func_t *func, void *input)
	Define the value of the boundary normal flux for the given cs_adv_field_t structure using an analytic function. More...
void	cs_advection_field_def_boundary_flux_by_array (cs_adv_field_t *adv, const char *zname, cs_flag_t loc, cs_real_t *array, bool is_owner, cs_lnum_t *index)
	Define the value of the boundary normal flux for the given cs_adv_field_t structure using an array of values. More...
void	cs_advection_field_create_fields (void)
	Create all needed cs_field_t structures related to an advection field. More...
void	cs_advection_field_finalize_setup (void)
	Last stage of the definition of an advection field based on several definitions (i.e. definition by subdomains on the boundary) More...
void	cs_advection_field_get_cell_vector (cs_lnum_t c_id, const cs_adv_field_t *adv, cs_nvec3_t *vect)
	Compute the value of the advection field at the cell center. More...
void	cs_advection_field_cw_eval_at_xyz (const cs_adv_field_t *adv, const cs_cell_mesh_t *cm, const cs_real_3_t xyz, cs_real_t time_eval, cs_nvec3_t *eval)
	Compute the value of the advection field at a specific location inside a cell. More...
void	cs_advection_field_in_cells (const cs_adv_field_t *adv, cs_real_t time_eval, cs_real_t *cell_values)
	Compute the mean-value of the advection field inside each cell. More...
void	cs_advection_field_at_vertices (const cs_adv_field_t *adv, cs_real_t time_eval, cs_real_t *vtx_values)
	Compute the value of the advection field at vertices. More...
void	cs_advection_field_across_boundary (const cs_adv_field_t *adv, cs_real_t time_eval, cs_real_t *flx_values)
	Compute the value of the normal flux of the advection field across the boundary faces. More...
cs_real_t	cs_advection_field_cw_boundary_face_flux (const cs_real_t time_eval, const short int f, const cs_cell_mesh_t *cm, const cs_adv_field_t *adv)
	Compute the value of the normal flux of the advection field across a boundary face f (cellwise version) More...
void	cs_advection_field_cw_boundary_f2v_flux (const cs_cell_mesh_t *cm, const cs_adv_field_t *adv, short int f, cs_real_t time_eval, cs_real_t *fluxes)
	Compute the value of the normal flux of the advection field across the closure of the dual cell related to each vertex belonging to the boundary face f. More...
void	cs_advection_field_cw_face_flux (const cs_cell_mesh_t *cm, const cs_adv_field_t *adv, cs_real_t time_eval, cs_real_t *fluxes)
	Compute the value of the flux of the advection field across the the (primal) faces of a cell. More...
void	cs_advection_field_cw_dface_flux (const cs_cell_mesh_t *cm, const cs_adv_field_t *adv, cs_real_t time_eval, cs_real_t *fluxes)
	Compute the value of the flux of the advection field across the the dual faces of a cell. More...
void	cs_advection_field_update (cs_real_t t_eval, bool cur2prev)
	For each cs_adv_field_t structures, update the values of the related field(s) More...
void	cs_advection_get_peclet (const cs_adv_field_t *adv, const cs_property_t *diff, cs_real_t t_eval, cs_real_t peclet[])
	Compute the Peclet number in each cell. More...
void	cs_advection_get_courant (const cs_adv_field_t *adv, cs_real_t dt_cur, cs_real_t courant[])
	Compute the Courant number in each cell. More...
cs_real_t *	cs_advection_field_divergence_at_vertices (const cs_adv_field_t *adv, cs_real_t t_eval)
	Compute the divergence of the advection field at vertices Useful for CDO Vertex-based schemes. More...

Variables
static const char	_err_empty_adv []
static const cs_cdo_quantities_t *	cs_cdo_quant
static const cs_cdo_connect_t *	cs_cdo_connect
static int	_n_adv_fields = 0
static cs_adv_field_t **	_adv_fields = NULL

Macro Definition Documentation

_dp3

#define _dp3   cs_math_3_dot_product

CS_ADVECTION_FIELD_DBG

#define CS_ADVECTION_FIELD_DBG   0

CS_ADVECTION_FIELD_ID_NOT_SET

#define CS_ADVECTION_FIELD_ID_NOT_SET   -1

CS_ADVECTION_FIELD_ID_TO_BE_SET

#define CS_ADVECTION_FIELD_ID_TO_BE_SET   -2

Function Documentation

_cw_fill_uniform_boundary_flux()

static void _cw_fill_uniform_boundary_flux ( const cs_cell_mesh_t *  cm, short int  f, cs_real_t  face_flux, cs_real_t *  fluxes  )

static

Update the contribution of the flux for each vertex.

Parameters

[in]	cm	pointer to a cs_cell_mesh_t structure
[in]	f	face id in the cellwise numbering
[in]	face_flux	value of the normal flux across the face
[in,out]	fluxes	normal boundary flux for each vertex of the face

_fill_uniform_boundary_flux()

static void _fill_uniform_boundary_flux ( const cs_cdo_quantities_t *const  cdoq, const cs_adjacency_t *const  f2e, const cs_adjacency_t *const  e2v, cs_lnum_t  bf_id, cs_real_t  face_flux, cs_real_t *  fluxes  )

static

Update the contribution of the flux.

Parameters

[in]	cdoq	pointer to a cs_cdo_quantities_t structure
[in]	f2e	face –> edge connectivity
[in]	e2v	edge –> vertices connectivity
[in]	bf_id	boundary face id
[in]	face_flux	value of the normal flux across the face
[in,out]	fluxes	array of values to update

_get_dim_def()

static int _get_dim_def ( const cs_adv_field_t *  adv )

inlinestatic

Return the required dimension for the definition of an advection field.

Parameters

[in]

adv

pointer to an advection field structure

Returns

the dimension

cs_advection_field_across_boundary()

void cs_advection_field_across_boundary	(	const cs_adv_field_t *	adv,
		cs_real_t	time_eval,
		cs_real_t *	flx_values
	)

Compute the value of the normal flux of the advection field across the boundary faces.

Parameters

[in]	adv	pointer to a cs_adv_field_t structure
[in]	time_eval	physical time at which one evaluates the term
[in,out]	flx_values	array storing the results

cs_advection_field_add()

cs_adv_field_t* cs_advection_field_add	(	const char *	name,
		cs_advection_field_status_t	status
	)

Add and initialize a new advection field structure.

Parameters

[in]	name	name of the advection field
[in]	status	status of the advection field to create

Returns

a pointer to the new allocated cs_adv_field_t structure

cs_advection_field_add_user()

cs_adv_field_t* cs_advection_field_add_user

(

const char *

name

)

Add and initialize a new user-defined advection field structure.

Parameters

[in]

name

name of the advection field

Returns

a pointer to the new allocated cs_adv_field_t structure

cs_advection_field_at_vertices()

void cs_advection_field_at_vertices	(	const cs_adv_field_t *	adv,
		cs_real_t	time_eval,
		cs_real_t *	vtx_values
	)

Compute the value of the advection field at vertices.

Parameters

[in]	adv	pointer to a cs_adv_field_t structure
[in]	time_eval	physical time at which one evaluates the term
[in,out]	vtx_values	array storing the results

cs_advection_field_by_id()

cs_adv_field_t* cs_advection_field_by_id

(

int

id

)

Search in the array of advection field structures which one has the id given in argument.

Parameters

[in]

id

identification number

Returns

a pointer to a cs_adv_field_t structure or NULL if not found

cs_advection_field_by_name()

cs_adv_field_t* cs_advection_field_by_name

(

const char *

name

)

Search in the array of advection field structures which one has the name given in argument.

Parameters

[in]

name

name of the advection field

Returns

a pointer to a cs_adv_field_t structure or NULL if not found

cs_advection_field_check_name()

bool cs_advection_field_check_name	(	const cs_adv_field_t *	adv,
		const char *	ref_name
	)

Check if the given advection field has the name ref_name.

Parameters

[in]	adv	pointer to a cs_adv_field_t structure to test
[in]	ref_name	name of the advection field to find

Returns

true if the name of the advection field is ref_name otherwise false

cs_advection_field_create_fields()

void cs_advection_field_create_fields

(

void

)

Create all needed cs_field_t structures related to an advection field.

cs_advection_field_cw_boundary_f2v_flux()

void cs_advection_field_cw_boundary_f2v_flux	(	const cs_cell_mesh_t *	cm,
		const cs_adv_field_t *	adv,
		short int	f,
		cs_real_t	time_eval,
		cs_real_t *	fluxes
	)

Compute the value of the normal flux of the advection field across the closure of the dual cell related to each vertex belonging to the boundary face f.

Parameters

[in]	cm	pointer to a cs_cell_mesh_t structure
[in]	adv	pointer to a cs_adv_field_t structure
[in]	f	face id in the cellwise numbering
[in]	time_eval	physical time at which one evaluates the term
[in,out]	fluxes	normal boundary flux for each vertex of the face

cs_advection_field_cw_boundary_face_flux()

cs_real_t cs_advection_field_cw_boundary_face_flux	(	const cs_real_t	time_eval,
		const short int	f,
		const cs_cell_mesh_t *	cm,
		const cs_adv_field_t *	adv
	)

Compute the value of the normal flux of the advection field across a boundary face f (cellwise version)

Parameters

[in]	time_eval	physical time at which one evaluates the term
[in]	f	face id in the cellwise numbering
[in]	cm	pointer to a cs_cell_mesh_t structure
[in]	adv	pointer to a cs_adv_field_t structure

Returns

the normal boundary flux for the face f

cs_advection_field_cw_dface_flux()

void cs_advection_field_cw_dface_flux	(	const cs_cell_mesh_t *	cm,
		const cs_adv_field_t *	adv,
		cs_real_t	time_eval,
		cs_real_t *	fluxes
	)

Compute the value of the flux of the advection field across the the dual faces of a cell.

Parameters

[in]	cm	pointer to a cs_cell_mesh_t structure
[in]	adv	pointer to a cs_adv_field_t structure
[in]	time_eval	physical time at which one evaluates the term
[in,out]	fluxes	array of values attached to dual faces of a cell

cs_advection_field_cw_eval_at_xyz()

void cs_advection_field_cw_eval_at_xyz	(	const cs_adv_field_t *	adv,
		const cs_cell_mesh_t *	cm,
		const cs_real_3_t	xyz,
		cs_real_t	time_eval,
		cs_nvec3_t *	eval
	)

Compute the value of the advection field at a specific location inside a cell.

Parameters

[in]	adv	pointer to a cs_adv_field_t structure
[in]	cm	pointer to a cs_cell_mesh_t structure
[in]	xyz	location where to perform the evaluation
[in]	time_eval	physical time at which one evaluates the term
[in,out]	eval	pointer to a cs_nvec3_t

cs_advection_field_cw_face_flux()

void cs_advection_field_cw_face_flux	(	const cs_cell_mesh_t *	cm,
		const cs_adv_field_t *	adv,
		cs_real_t	time_eval,
		cs_real_t *	fluxes
	)

Compute the value of the flux of the advection field across the the (primal) faces of a cell.

Parameters

[in]	cm	pointer to a cs_cell_mesh_t structure
[in]	adv	pointer to a cs_adv_field_t structure
[in]	time_eval	physical time at which one evaluates the term
[in,out]	fluxes	array of values attached to primal faces of a cell

cs_advection_field_def_boundary_flux_by_analytic()

void cs_advection_field_def_boundary_flux_by_analytic	(	cs_adv_field_t *	adv,
		const char *	zname,
		cs_analytic_func_t *	func,
		void *	input
	)

Define the value of the boundary normal flux for the given cs_adv_field_t structure using an analytic function.

Parameters

[in,out]	adv	pointer to a cs_adv_field_t structure
[in]	zname	name of the boundary zone to consider
[in]	func	pointer to a function
[in]	input	NULL or pointer to a structure cast on-the-fly

cs_advection_field_def_boundary_flux_by_array()

void cs_advection_field_def_boundary_flux_by_array	(	cs_adv_field_t *	adv,
		const char *	zname,
		cs_flag_t	loc,
		cs_real_t *	array,
		bool	is_owner,
		cs_lnum_t *	index
	)

Define the value of the boundary normal flux for the given cs_adv_field_t structure using an array of values.

Parameters

[in,out]	adv	pointer to a cs_adv_field_t structure
[in]	zname	name of the boundary zone to consider
[in]	loc	information to know where are located values
[in]	array	pointer to an array
[in]	is_owner	transfer the lifecycle to the cs_xdef_t structure (true or false)
[in]	index	optional pointer to the array index

cs_advection_field_def_boundary_flux_by_value()

void cs_advection_field_def_boundary_flux_by_value	(	cs_adv_field_t *	adv,
		const char *	zname,
		cs_real_t	normal_flux
	)

Define the value of the boundary normal flux for the given cs_adv_field_t structure.

Parameters

[in,out]	adv	pointer to a cs_adv_field_t structure
[in]	zname	name of the boundary zone to consider
[in]	normal_flux	value to set

cs_advection_field_def_by_analytic()

void cs_advection_field_def_by_analytic	(	cs_adv_field_t *	adv,
		cs_analytic_func_t *	func,
		void *	input
	)

Define a cs_adv_field_t structure thanks to an analytic function.

Parameters

[in,out]	adv	pointer to a cs_adv_field_t structure
[in]	func	pointer to a function
[in]	input	NULL or pointer to a structure cast on-the-fly

cs_advection_field_def_by_array()

void cs_advection_field_def_by_array	(	cs_adv_field_t *	adv,
		cs_flag_t	loc,
		cs_real_t *	array,
		bool	is_owner,
		cs_lnum_t *	index
	)

Define a cs_adv_field_t structure thanks to an array of values.

Parameters

[in,out]	adv	pointer to a cs_adv_field_t structure
[in]	loc	information to know where are located values
[in]	array	pointer to an array
[in]	is_owner	transfer the lifecycle to the cs_xdef_t structure (true or false)
[in]	index	optional pointer to the array index

cs_advection_field_def_by_field()

void cs_advection_field_def_by_field	(	cs_adv_field_t *	adv,
		cs_field_t *	field
	)

Define a cs_adv_field_t structure thanks to an array of values.

Parameters

[in,out]	adv	pointer to a cs_adv_field_t structure
[in]	field	pointer to a cs_field_t structure

cs_advection_field_def_by_value()

void cs_advection_field_def_by_value	(	cs_adv_field_t *	adv,
		cs_real_t *	values
	)

Define the value of a cs_adv_field_t structure.

Parameters

[in,out]	adv	pointer to a cs_adv_field_t structure
[in]	values	values to set

cs_advection_field_destroy_all()

void cs_advection_field_destroy_all

(

void

)

Free all alllocated cs_adv_field_t structures and its related array.

Returns

a NULL pointer

cs_advection_field_divergence_at_vertices()

cs_real_t* cs_advection_field_divergence_at_vertices	(	const cs_adv_field_t *	adv,
		cs_real_t	t_eval
	)

Compute the divergence of the advection field at vertices Useful for CDO Vertex-based schemes.

Parameters

[in]	adv	pointer to the advection field struct.
[in]	t_eval	time at which one evaluates the advection field

Returns

a pointer to an array storing the result

cs_advection_field_finalize_setup()

void cs_advection_field_finalize_setup

(

void

)

Last stage of the definition of an advection field based on several definitions (i.e. definition by subdomains on the boundary)

cs_advection_field_get_cell_vector()

void cs_advection_field_get_cell_vector	(	cs_lnum_t	c_id,
		const cs_adv_field_t *	adv,
		cs_nvec3_t *	vect
	)

Compute the value of the advection field at the cell center.

Parameters

[in]	c_id	id of the current cell
[in]	adv	pointer to a cs_adv_field_t structure
[in,out]	vect	pointer to a cs_nvec3_t structure (meas + unitv)

cs_advection_field_get_n_fields()

int cs_advection_field_get_n_fields

(

void

)

Get the number of allocated cs_adv_field_t structures.

Returns

the number of advection fields

cs_advection_field_in_cells()

void cs_advection_field_in_cells	(	const cs_adv_field_t *	adv,
		cs_real_t	time_eval,
		cs_real_t *	cell_values
	)

Compute the mean-value of the advection field inside each cell.

Parameters

[in]	adv	pointer to a cs_adv_field_t structure
[in]	time_eval	physical time at which one evaluates the term
[in,out]	cell_values	array of values at cell centers

cs_advection_field_log_setup()

void cs_advection_field_log_setup

(

void

)

Print all setup information related to cs_adv_field_t structures.

cs_advection_field_set_option()

void cs_advection_field_set_option	(	cs_adv_field_t *	adv,
		cs_advection_field_key_t	key
	)

Set optional parameters related to a cs_adv_field_t structure.

Parameters

[in,out]	adv	pointer to a cs_adv_field_t structure
[in]	key	key related to the member of adv to set

cs_advection_field_set_shared_pointers()

void cs_advection_field_set_shared_pointers	(	const cs_cdo_quantities_t *	quant,
		const cs_cdo_connect_t *	connect
	)

Set shared pointers to main domain members.

Parameters

[in]	quant	additional mesh quantities struct.
[in]	connect	pointer to a cs_cdo_connect_t struct.

cs_advection_field_update()

void cs_advection_field_update	(	cs_real_t	t_eval,
		bool	cur2prev
	)

For each cs_adv_field_t structures, update the values of the related field(s)

Parameters

[in]	t_eval	physical time at which one evaluates the term
[in]	cur2prev	true or false

cs_advection_get_courant()

void cs_advection_get_courant	(	const cs_adv_field_t *	adv,
		cs_real_t	dt_cur,
		cs_real_t	courant[]
	)

Compute the Courant number in each cell.

Parameters

[in]	adv	pointer to the advection field struct.
[in]	dt_cur	current time step
[in,out]	courant	pointer to an array storing the Courant number

cs_advection_get_peclet()

void cs_advection_get_peclet	(	const cs_adv_field_t *	adv,
		const cs_property_t *	diff,
		cs_real_t	t_eval,
		cs_real_t	peclet[]
	)

Compute the Peclet number in each cell.

Parameters

[in]	adv	pointer to the advection field struct.
[in]	diff	pointer to the diffusion property struct.
[in]	t_eval	time at which one evaluates the advection field
[in,out]	peclet	pointer to an array storing the Peclet number

Variable Documentation

_adv_fields

cs_adv_field_t** _adv_fields = NULL

static

_err_empty_adv

const char _err_empty_adv[]

static

Initial value:

=
  " Stop setting an empty cs_adv_field_t structure.\n"
  " Please check your settings.\n"

_n_adv_fields

int _n_adv_fields = 0

static

cs_cdo_connect

const cs_cdo_connect_t* cs_cdo_connect

static

cs_cdo_quant

const cs_cdo_quantities_t* cs_cdo_quant

static
