#include "cs_defs.h"
#include "cs_lagr_particle.h"
#include "assert.h"

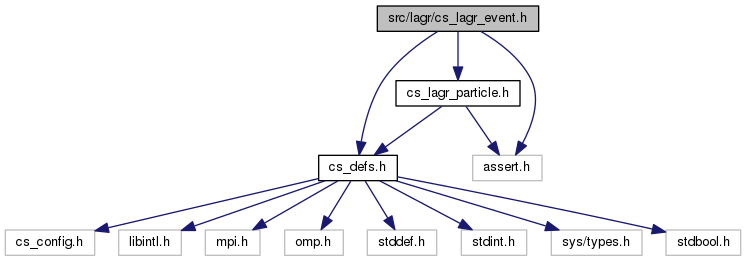

Include dependency graph for cs_lagr_event.h:

Data Structures
struct	cs_lagr_event_attribute_map_t

struct	cs_lagr_event_set_t

Macros
#define	CS_EVENT_INFLOW (1 << 0)

#define	CS_EVENT_OUTFLOW (1 << 1)

#define	CS_EVENT_REBOUND (1 << 2)

#define	CS_EVENT_DEPOSITION (1 << 3)

#define	CS_EVENT_RESUSPENSION (1 << 4)

#define	CS_EVENT_ROLL_OFF (1 << 5)

#define	CS_EVENT_ROLL_ON (1 << 6)

#define	CS_EVENT_FOULING (1 << 7)

Enumerations
enum	cs_lagr_event_attribute_t { CS_LAGR_E_FLAG = CS_LAGR_N_ATTRIBUTES, CS_LAGR_E_CELL_ID, CS_LAGR_E_FACE_ID, CS_LAGR_E_VELOCITY, CS_LAGR_N_E_ATTRIBUTES }

Functions
void	cs_lagr_event_initialize (void)
	Define event map based on defined options. More...

void	cs_lagr_event_finalize (void)
	Destroy event set map if it exists. More...

const cs_lagr_event_attribute_map_t *	cs_lagr_event_get_attr_map (void)
	Return const pointer to the main event attribute map structure. More...

const char *	cs_lagr_event_get_attr_name (cs_lagr_event_attribute_t attr)
	Return name associated with a given attribute. More...

cs_lagr_event_set_t *	cs_lagr_event_set_create (void)

void	cs_lagr_event_set_destroy (cs_lagr_event_set_t **events)

void	cs_lagr_event_get_attr_info (const cs_lagr_event_set_t events, cs_lagr_event_attribute_t attr, size_t extents, size_t size, ptrdiff_t displ, cs_datatype_t datatype, int count)
	Get data extents for a given event attribute. More...

void	cs_lagr_event_attr_in_range (int attr)
	Check if an event attribute is in a valid range. More...

static void *	cs_lagr_events_attr (cs_lagr_event_set_t *event_set, cs_lnum_t event_id, cs_lagr_event_attribute_t attr)
	Get pointer to a current attribute of a given event in a set. More...

static const void *	cs_lagr_events_attr_const (const cs_lagr_event_set_t *event_set, cs_lnum_t event_id, cs_lagr_event_attribute_t attr)
	Get const pointer to current attribute data of a given event in a set. More...

static cs_lnum_t	cs_lagr_events_get_lnum (const cs_lagr_event_set_t *event_set, cs_lnum_t event_id, cs_lagr_event_attribute_t attr)
	Get attribute value of type cs_lnum_t of a given event in a set. More...

static void	cs_lagr_events_set_lnum (cs_lagr_event_set_t *event_set, cs_lnum_t event_id, cs_lagr_event_attribute_t attr, cs_lnum_t value)
	Set attribute value of type cs_lnum_t of a given event in a set. More...

static cs_real_t	cs_lagr_events_get_real (const cs_lagr_event_set_t *event_set, cs_lnum_t event_id, cs_lagr_event_attribute_t attr)
	Get attribute value of type cs_real_t of a given event in a set. More...

static void	cs_lagr_events_set_real (cs_lagr_event_set_t *event_set, cs_lnum_t event_id, cs_lagr_event_attribute_t attr, cs_real_t value)
	Set attribute value of type cs_real_t of a given event in a set. More...

void	cs_lagr_event_set_resize (cs_lagr_event_set_t *event_set, cs_lnum_t min_size)

void	cs_lagr_event_set_dump (const cs_lagr_event_set_t *events)
	Dump a cs_lagr_event_set_t structure. More...

void	cs_lagr_event_init_from_particle (cs_lagr_event_set_t events, cs_lagr_particle_set_t particles, cs_lnum_t event_id, cs_lnum_t particle_id)

cs_lagr_event_set_t *	cs_lagr_event_set_boundary_interaction (void)

Macro Definition Documentation

◆ CS_EVENT_DEPOSITION

#define CS_EVENT_DEPOSITION (1 << 3)

deposistion event

◆ CS_EVENT_FOULING

#define CS_EVENT_FOULING (1 << 7)

fouling

◆ CS_EVENT_INFLOW

#define CS_EVENT_INFLOW (1 << 0)

Flags specifying general event attributes

inflow event

◆ CS_EVENT_OUTFLOW

#define CS_EVENT_OUTFLOW (1 << 1)

outflow event

◆ CS_EVENT_REBOUND

#define CS_EVENT_REBOUND (1 << 2)

rebound on wall

◆ CS_EVENT_RESUSPENSION

#define CS_EVENT_RESUSPENSION (1 << 4)

resuspension event

◆ CS_EVENT_ROLL_OFF

#define CS_EVENT_ROLL_OFF (1 << 5)

roll off

◆ CS_EVENT_ROLL_ON

#define CS_EVENT_ROLL_ON (1 << 6)

roll on

Enumeration Type Documentation

◆ cs_lagr_event_attribute_t

enum cs_lagr_event_attribute_t

Prefedined event attributes

Enumerator
CS_LAGR_E_FLAG	local flag
CS_LAGR_E_CELL_ID	local cell id
CS_LAGR_E_FACE_ID	local face id (-1 if not on boundary)
CS_LAGR_E_VELOCITY	velocity following event
CS_LAGR_N_E_ATTRIBUTES

Function Documentation

◆ cs_lagr_event_attr_in_range()

void cs_lagr_event_attr_in_range ( int attr )

Check if an event attribute is in a valid range.

If this is not the case, a fatal error is provoked.

Parameters

[in] attr event attribute

◆ cs_lagr_event_finalize()

void cs_lagr_event_finalize ( void )

Destroy event set map if it exists.

◆ cs_lagr_event_get_attr_info()

void cs_lagr_event_get_attr_info	(	const cs_lagr_event_set_t *	events,
		cs_lagr_event_attribute_t	attr,
		size_t *	extents,
		size_t *	size,
		ptrdiff_t *	displ,
		cs_datatype_t *	datatype,
		int *	count
	)

Get data extents for a given event attribute.

For attributes not currently present, the displacement and data size should be -1 and 0 respectively.

Parameters

[in]	events	associated event set
[in]	attr	event attribute
[out]	extents	size (in bytes) of event structure, or NULL
[out]	size	size (in bytes) of attribute in event structure, or NULL
[out]	displ	displacement (in bytes) in event structure, or NULL
[out]	datatype	datatype of associated attribute, or NULL
[out]	count	number of type values associated with attribute, or NULL

Get data extents for a given event attribute.

For attributes not currently present, the displacement and data size should be -1 and 0 respectively.

Parameters

[in]	events	associated event set
[in]	attr	event attribute
[out]	extents	size (in bytes) of event structure, or NULL
[out]	size	size (in bytes) of attribute in event structure, or NULL
[out]	displ	displacement (in bytes) in event structure, or NULL
[out]	datatype	datatype of associated attribute, or NULL
[out]	count	number of type values associated with attribute, or NULL

◆ cs_lagr_event_get_attr_map()

const cs_lagr_event_attribute_map_t* cs_lagr_event_get_attr_map ( void )

Return const pointer to the main event attribute map structure.

Returns: pointer to current event attribute map, or NULL

Return const pointer to the main event attribute map structure.

Returns: pointer to current particle event attrbute map, or NULL

◆ cs_lagr_event_get_attr_name()

const char* cs_lagr_event_get_attr_name ( cs_lagr_event_attribute_t attr )

Return name associated with a given attribute.

Parameters

[in] attr event attribute

◆ cs_lagr_event_init_from_particle()

void cs_lagr_event_init_from_particle	(	cs_lagr_event_set_t *	events,
		cs_lagr_particle_set_t *	particles,
		cs_lnum_t	event_id,
		cs_lnum_t	particle_id
	)

◆ cs_lagr_event_initialize()

void cs_lagr_event_initialize ( void )

Define event map based on defined options.

This function should only be called after cs_lagr_attr_initialize, as it may use elements from the main particle attributes map.

Define event map based on defined options.

◆ cs_lagr_event_set_boundary_interaction()

cs_lagr_event_set_t* cs_lagr_event_set_boundary_interaction ( void )

Return a cs_lagr_event_set_t structure for particle/boundary interactions.

The event set is created if not present yet.

This event set is automatically freed and destroyed at the end of the computation.

Returns: pointer to event set

◆ cs_lagr_event_set_create()

cs_lagr_event_set_t* cs_lagr_event_set_create ( void )

Create a cs_lagr_event_set_t structure.

Returns: pointer to event set

◆ cs_lagr_event_set_destroy()

void cs_lagr_event_set_destroy ( cs_lagr_event_set_t ** events )

Destroy a cs_lagr_event_set_t structure.

Parameters

[in,out] pointer to pointer to event set to destroy

◆ cs_lagr_event_set_dump()

void cs_lagr_event_set_dump ( const cs_lagr_event_set_t * events )

Dump a cs_lagr_event_set_t structure.

Parameters

[in]	events	cs_lagr_event_t structure to dump
[in]	events	cs_lagr_event_set_t structure to dump

◆ cs_lagr_event_set_resize()

void cs_lagr_event_set_resize	(	cs_lagr_event_set_t *	event_set,
		cs_lnum_t	min_size
	)

◆ cs_lagr_events_attr()

static void* cs_lagr_events_attr	(	cs_lagr_event_set_t *	event_set,
		cs_lnum_t	event_id,
		cs_lagr_event_attribute_t	attr
	)

inlinestatic

Get pointer to a current attribute of a given event in a set.

Parameters

[in]	event_set	pointer to event set
[in]	event_id	event id
[in]	attr	requested attribute id

Returns: pointer to current attribute data

◆ cs_lagr_events_attr_const()

static const void* cs_lagr_events_attr_const	(	const cs_lagr_event_set_t *	event_set,
		cs_lnum_t	event_id,
		cs_lagr_event_attribute_t	attr
	)

inlinestatic

Get const pointer to current attribute data of a given event in a set.

Parameters

[in]	event_set	pointer to event set
[in]	event_id	event id
[in]	attr	requested attribute id

Returns: pointer to current attribute data

◆ cs_lagr_events_get_lnum()

static cs_lnum_t cs_lagr_events_get_lnum	(	const cs_lagr_event_set_t *	event_set,
		cs_lnum_t	event_id,
		cs_lagr_event_attribute_t	attr
	)

inlinestatic

Get attribute value of type cs_lnum_t of a given event in a set.

Parameters

[in]	event_set	pointer to event set
[in]	event_id	event id
[in]	attr	requested attribute id

Returns: attribute value

◆ cs_lagr_events_get_real()

static cs_real_t cs_lagr_events_get_real	(	const cs_lagr_event_set_t *	event_set,
		cs_lnum_t	event_id,
		cs_lagr_event_attribute_t	attr
	)

inlinestatic

Get attribute value of type cs_real_t of a given event in a set.

Parameters

[in]	event_set	pointer to event set
[in]	event_id	event id
[in]	attr	requested attribute id

Returns: attribute value

◆ cs_lagr_events_set_lnum()

static void cs_lagr_events_set_lnum	(	cs_lagr_event_set_t *	event_set,
		cs_lnum_t	event_id,
		cs_lagr_event_attribute_t	attr,
		cs_lnum_t	value
	)

inlinestatic

Set attribute value of type cs_lnum_t of a given event in a set.

Parameters

[in,out]	event_set	pointer to event set
[in]	event_id	event id
[in]	attr	requested attribute id
[in]	value	value to assign

◆ cs_lagr_events_set_real()

static void cs_lagr_events_set_real	(	cs_lagr_event_set_t *	event_set,
		cs_lnum_t	event_id,
		cs_lagr_event_attribute_t	attr,
		cs_real_t	value
	)

inlinestatic

Set attribute value of type cs_real_t of a given event in a set.

Parameters

[in,out]	event_set	pointer to event set
[in]	event_id	event id
[in]	attr	requested attribute id
[in]	value	value to assign
