cs_domain.c File Reference

Manage a computational domain. More...

#include "cs_defs.h"
#include <assert.h>
#include <ctype.h>
#include <errno.h>
#include <float.h>
#include <locale.h>
#include <math.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <bft_mem.h>
#include "cs_boundary_zone.h"
#include "cs_log.h"
#include "cs_math.h"
#include "cs_mesh_location.h"
#include "cs_prototypes.h"
#include "cs_quadrature.h"
#include "cs_restart.h"
#include "cs_time_step.h"
#include "cs_domain.h"

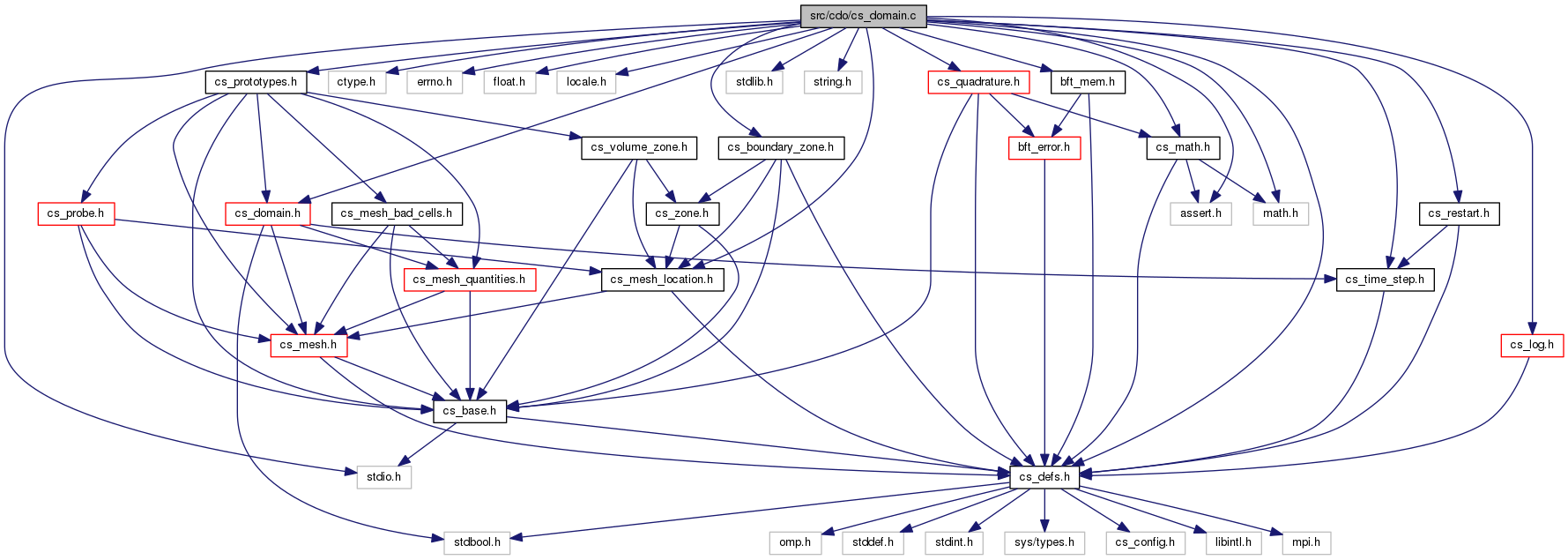

Include dependency graph for cs_domain.c:

Functions
cs_domain_t *	cs_domain_create (void)
	Create and initialize by default a cs_domain_t structure. More...
void	cs_domain_free (cs_domain_t **p_domain)
	Free a cs_domain_t structure. More...
void	cs_domain_set_cdo_mode (cs_domain_t *domain, int mode)
	Set the global variable storing the mode of activation to apply to CDO/HHO schemes. More...
int	cs_domain_get_cdo_mode (const cs_domain_t *domain)
	Get the mode of activation for the CDO/HHO schemes. More...
bool	cs_domain_needs_iteration (cs_domain_t *domain)
	Check if one needs to continue iterations in time. More...
bool	cs_domain_needs_log (const cs_domain_t *domain)
	Check if an ouput is requested according to the domain setting. More...
void	cs_domain_define_current_time_step (cs_domain_t *domain)
	Set the current time step for this new time iteration. More...
void	cs_domain_increment_time (cs_domain_t *domain)
	Update the simulated time after one temporal iteration. More...
void	cs_domain_cdo_log (const cs_domain_t *domain)
	Print a welcome message indicating which mode of CDO is activated. More...

Variables
cs_domain_t *	cs_glob_domain = NULL
static const char	_err_empty_domain []
static double	cs_domain_kahan_time_compensation = 0.0

Detailed Description

Manage a computational domain.

• Settings, fields, connectivities and geometrical quantities
• Properties and advection fields attached to this domain
• Equations to solve on this domain

Function Documentation

cs_domain_cdo_log()

void cs_domain_cdo_log

(

const cs_domain_t *

domain

)

Print a welcome message indicating which mode of CDO is activated.

Parameters

[in]

domain

pointer to a cs_domain_t structure

cs_domain_create()

cs_domain_t* cs_domain_create

(

void

)

Create and initialize by default a cs_domain_t structure.

Returns

a pointer to a cs_domain_t structure

cs_domain_define_current_time_step()

void cs_domain_define_current_time_step

(

cs_domain_t *

domain

)

Set the current time step for this new time iteration.

Parameters

[in,out]

domain

pointer to a cs_domain_t structure

cs_domain_free()

void cs_domain_free

(

cs_domain_t **

p_domain

)

Free a cs_domain_t structure.

Parameters

[in,out]

p_domain

pointer of pointer to a cs_domain_t structure

cs_domain_get_cdo_mode()

int cs_domain_get_cdo_mode

(

const cs_domain_t *

domain

)

Get the mode of activation for the CDO/HHO schemes.

Parameters

[in]

domain

pointer to a cs_domain_t structure

Returns

the mode of activation for the CDO/HHO module

cs_domain_increment_time()

void cs_domain_increment_time

(

cs_domain_t *

domain

)

Update the simulated time after one temporal iteration.

Update time step after one temporal iteration.

Parameters

[in,out]

domain

pointer to a cs_domain_t structure

cs_domain_needs_iteration()

bool cs_domain_needs_iteration

(

cs_domain_t *

domain

)

Check if one needs to continue iterations in time.

Parameters

[in,out]

domain

pointer to a cs_domain_t structure

Returns

true or false

cs_domain_needs_log()

bool cs_domain_needs_log

(

const cs_domain_t *

domain

)

Check if an ouput is requested according to the domain setting.

Parameters

[in]

domain

pointer to a cs_domain_t structure

Returns

true or false

cs_domain_set_cdo_mode()

void cs_domain_set_cdo_mode	(	cs_domain_t *	domain,
		int	mode
	)

Set the global variable storing the mode of activation to apply to CDO/HHO schemes.

Parameters

[in,out]	domain	pointer to a cs_domain_t structure
[in]	mode	type of activation for the CDO/HHO module

Variable Documentation

_err_empty_domain

const char _err_empty_domain[]

static

Initial value:

=
  " Stop setting an empty cs_domain_t structure.\n"
  " Please check your settings.\n"

cs_domain_kahan_time_compensation

double cs_domain_kahan_time_compensation = 0.0

static

cs_glob_domain

cs_domain_t* cs_glob_domain = NULL
