Wavy vortex flow

[caste08]

Hello everybody,

I'm working on the Taylor-Couette setup with Code Saturne version 3.0.3. I have succesfully computed for the stable Taylor vortex flow (inner-cylinder rotation set with cs_boundary_conditions subroutine, outer cylinder stationary). For this case a 250,000 element mesh was sufficient.

I am now testing for wavy vortex flow. I set the inner cylinder rotation speed at 19.05 rad/s, which according to the geometry and experiments performed, should result in the wavy vortex flow regime.

I am expecting a periodic Z-velocity component at the monitoring points. After a first transient response, the solution seems to be periodic, but is eventually damped and finally converges to a steady solution with no periodicity. For this case I am using a finer mesh, 1 million elements, a time step of 0.005 and 4000 iterations.

I tested with other angular velocities with the same result, periodicity for a while but converges to a steady solution.

Any ideas on why this happens and how to achieve the periodic solution?

I attach the listing file, compile.log, preprocessor.log, xml file, user subroutines, and the probes_velocityZ.csv and probes_velocityY.csv files.

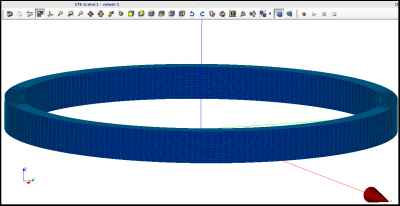

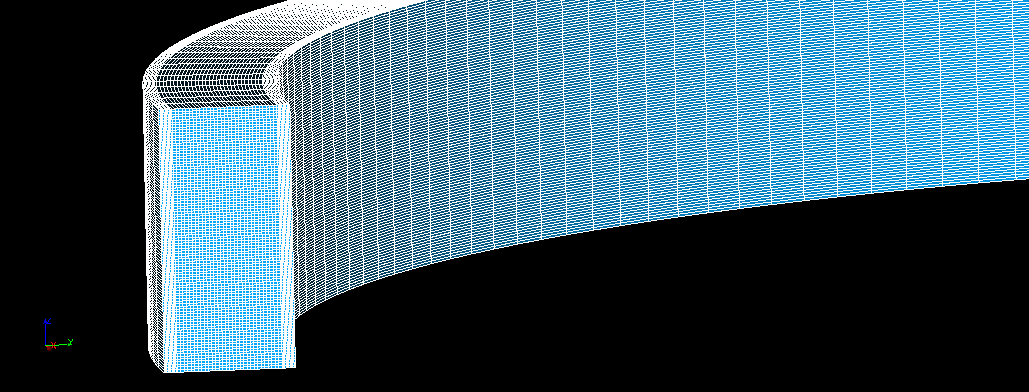

I attach images of the mesh. It consists of hexahedral elements, 50 in radial direction (finer close to the inner_wall and outer _wall), 100 equidistant elements in axial direction, and 200 equidistant elements in azimuthal direction.

Note: I modified the clptur.f90 file in order to extract the friction velocity and used cs_user_modules and cs_user_postprocess_var to output the wall shear stress.

Thank you for the support,

Best regards
Carlos

[Brian Angel]

Can you upload the volume mesh that you are using?

Regards,

Brian Angel.

[Brian Angel]

Hello Carlos,

One other thing, are you using work that is available in the open literature to test Code_Saturne? If so, can you send me the details of the publication or upload in onto this forum?

Regards,

Brian Angel.
