Examples of data settings for radiative transfers

Activation of the module

The module can be activated in the cs_user_model function in cs_user_parameters.c. The corresponding keyword is the type member of the cs_glob_rad_transfer_params structure.

This member can take the values:

Radiation module specific parameters.

When the module is activated, its specific input parameters should be set in the cs_user_radiative_transfer_parameters function of the cs_user_radiative_transfer.c file.

Calculation options for the radiative transfer module.

Radiative transfer parameters may be defined using the cs_user_radiative_transfer_parameters function.

Radiative transfer boundary conditions

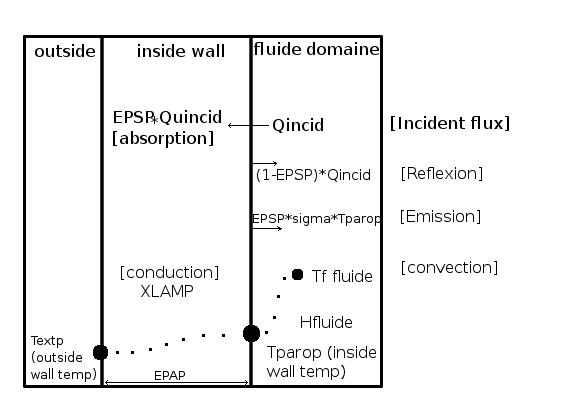

Sketch of thermal flux in boundary walls

The radiative boundary condition is based on the calculation of a new wall temperature. This temperature is computed with a thermal flux balance:

\[{ Q_{conduction} = Q_{convection} + (Q_{rayt_{absorption}} - Q_{rayt_{emission}}}) \]

Therefore :

\[ \dfrac{xlamp}{epap}  (T_{fluid} - T_{wall})
= h_{fluid}  (T_{fluid} - T_{wall}) + epsp  (Q_{incid} - \sigma * T_{wall}) \]

Note
In code_saturne the flux is positive when it is oriented from inside to outside.
Body Emissivity
polished steel 0.06
oxidized steel 0.80
rough steel 0.94
polished aluminium 0.04
oxidized aluminium (inside) 0.09
oxidized aluminium (wet air) 0.90
brick 0.93
concrete 0.93
paper 0.8 to 0.9
water 0.96

Boundary faces identification

Boundary faces may be identified using the getfbr function, or preferrably, through boundary zones, defined using the GUI or the cs_user_zones function..

Initialization and finalization

The following declaration and initialization block needs to be added for the following examples:

const cs_zone_t *zone = nullptr;
int * cs_boundary_zone_face_class_id(void)
Get pointer to optional boundary face class ids.
Definition: cs_boundary_zone.cpp:1026
double cs_real_t
Floating-point value.
Definition: cs_defs.h:342
const double cs_physical_constants_celsius_to_kelvin
Definition: cs_physical_constants.cpp:449
double precision tkelvi
Temperature in Kelvin correponding to 0 degrees Celsius (= +273,15)
Definition: cstphy.f90:44
Definition: cs_zone.h:55

Remaining initialization

ivar: number of the thermal variable

cs_field_t * cs_thermal_model_field(void)
Definition: cs_thermal_model.cpp:216
Field descriptor.
Definition: cs_field.h:131

Min and Max values for the wall temperatures (clipping otherwise)

$ T_{min} $ and $T_{max} $ are given in Kelvin.

*tmin = 0.0;
*tmax = cs_math_big_r + tkelvi;
const cs_real_t cs_math_big_r

Assign boundary conditions to boundary wall

Zone definitions

For each boundary face face_id, a specific output (logging and postprocessing) zone id may be assigned. This allows realizing balance sheets by treating them separately for each zone. By default, the output zone id is set to the general (input) zone id associated to a face.

To access output zone ids (both for reading and modifying), use the cs_boundary_zone_face_zone_id function.

Wall characteristics

Warning
The unit of the temperature is the Kelvin

Mandatory data

  • isothp(ifac) boundary face type
    • CS_BOUNDARY_RAD_WALL_GRAY: Gray wall with temperature based on fluid BCs
    • CS_BOUNDARY_RAD_WALL_GRAY_EXTERIOR_T: Gray wall with fixed exterior temperature
    • CS_BOUNDARY_RAD_WALL_REFL_EXTERIOR_T: Reflecting wall with fixed outside temperature (same as Gray wall with zero emissivity)
    • CS_BOUNDARY_RAD_WALL_GRAY_COND_FLUX: Gray wall with fixed conduction flux
    • CS_BOUNDARY_RAD_WALL_GRAY_REFL_FLUX: Reflecting wall with fixed conduction flux

Other data (depending of the isothp)

  • rcodcl = conduction flux
  • epsp = emissivity
  • xlamp = conductivity ( $W.m^{-1}.K^{-1}$)
  • epap = thickness ( $m$)
  • textp = outside temperature ( $K$)

Examples of boundary conditions

Here is a list of examples:

Gray or black wall with profil of fixed inside temperature

For wall boundary faces, selection criteria: color 1

zone = cs_boundary_zone_by_name("wall_1");
for (cs_lnum_t ilelt = 0; ilelt < zone->n_elts; ilelt++) {
cs_lnum_t face_id = zone->elt_ids[ilelt];
if (bc_type[face_id] == CS_SMOOTHWALL) {
/* logging zone number */
izfrdp[face_id] = 51;
/* Type of condition: gray or black wall with fixed interior
temperature (based on main temperature BC's) */
isothp[face_id] = CS_BOUNDARY_RAD_WALL_GRAY;
/* Emissivity */
epsp[face_id] = 0.1;
}
}
const cs_zone_t * cs_boundary_zone_by_name(const char *name)
Return a pointer to a boundary zone based on its name if present.
Definition: cs_boundary_zone.cpp:711
int cs_lnum_t
local mesh entity id
Definition: cs_defs.h:335
@ CS_SMOOTHWALL
Definition: cs_parameters.h:89
@ CS_BOUNDARY_RAD_WALL_GRAY
Definition: cs_rad_transfer.h:82
const cs_lnum_t * elt_ids
Definition: cs_zone.h:65
cs_lnum_t n_elts
Definition: cs_zone.h:64

Gray or black wall with fixed outside temperature \f$ T_{ext} \f$

For wall boundary faces, selection criteria: color 2

zone = cs_boundary_zone_by_name("wall_2");
for (cs_lnum_t ilelt = 0; ilelt < zone->n_elts; ilelt++) {
cs_lnum_t face_id = zone->elt_ids[ilelt];
if (bc_type[face_id] == CS_ROUGHWALL) {
/* logging zone number */
izfrdp[face_id] = 52;
/* Gray or black wall with fixed exterior temperature */
/* Emissivity */
epsp[face_id] = 0.9;
/* Conductivity (W/m/K)*/
xlamp[face_id] = 3.0;
/* Thickness (m)*/
epap[face_id] = 0.1;
/* Fixed exterior temperature: 473.15 K */
textp[face_id] = 200. + tkelvi;
}
}
@ CS_ROUGHWALL
Definition: cs_parameters.h:90
@ CS_BOUNDARY_RAD_WALL_GRAY_EXTERIOR_T
Definition: cs_rad_transfer.h:89

Reflecting wall (\f$ epsp = 0 \f$) with fixed outside temperature \f$ T_{ext} \f$

For wall boundary faces, selection criteria: color 3

zone = cs_boundary_zone_by_name("wall_3");
for (cs_lnum_t ilelt = 0; ilelt < zone->n_elts; ilelt++) {
cs_lnum_t face_id = zone->elt_ids[ilelt];
if (bc_type[face_id] == CS_SMOOTHWALL) {
/* log zone number */
izfrdp[face_id] = 53;
/* Type of condition: reflecting wall with fixed outside temperature */
/* Conductivity (W/m/K) */
xlamp[face_id] = 3.0;
/* Thickness (m)*/
epap[face_id] = 0.10;
/* Fixed outside temperature: 473.15 K */
textp[face_id] = 200.0 + tkelvi;
}
}
@ CS_BOUNDARY_RAD_WALL_REFL_EXTERIOR_T
Definition: cs_rad_transfer.h:95

Gray or black wall and fixed conduction flux through the wall

For wall boundary faces which have the color 4:

\[
\begin{array}{rcl}
\frac{\texttt{xlamp}}{\texttt{epap}} \cdot (T_{wall} - T_{ext})
&=& \text{fixed conduction flux in } W.m^{-2} \\
&=& \texttt{rodcl(ifac,ivar,3)}
\end{array}
\]

If the conduction flux is zero then the wall is adiabatic. The array $ \texttt{rcodcl(ifac,ivar,3)}$ has the value of the flux.
Flux density (< 0 if gain for the fluid)

  • For temperature $T$, in $ W.m^{-2}$:

\[ rcodcl(ifac,ivar,3)=C_p (viscls+\frac{visct}{\sigma})\cdot \grad{T}\cdot \vect{n} \]

  • For enthalpy $h$, in $ W.m^{-2} $:

    \[ RCODC(IFAC,IVAR,3)=(viscls+\frac{visct}{\sigma})\cdot \grad{H} \cdot \vect{n}\]

zone = cs_boundary_zone_by_name("wall_4");
for (cs_lnum_t ilelt = 0; ilelt < zone->n_elts; ilelt++) {
cs_lnum_t face_id = zone->elt_ids[ilelt];
if (bc_type[face_id] == CS_SMOOTHWALL) {
/* log zone number */
izfrdp[face_id] = 54;
/* Type of condition: gray or black wall with fixed conduction
flux through the wall */
/* Emissivity */
epsp[face_id] = 0.9;
/* Conduction flux (W/m2) */
f_th->bc_coeffs->rcodcl3[face_id] = 0.0;
}
}
@ CS_BOUNDARY_RAD_WALL_GRAY_COND_FLUX
Definition: cs_rad_transfer.h:99
cs_real_t * rcodcl3
Definition: cs_field.h:111
cs_field_bc_coeffs_t * bc_coeffs
Definition: cs_field.h:163

Reflecting wall and fixed conduction flux through the wall

For wall boundary faces which have the color 5:

\[
\frac{xlamp}{epap} \cdot (T_{wall} - T_{ext}) = \text{fixed conduction flux}
\]

and $ epsp = 0 $

If the conduction flux is zero then the wall is adiabatic. Flux density (< 0 if gain for the fluid)

  • For temperatures $T$, in $ W.m^{-2} $:

    \[  rcodcl(ifac,ivar,3) = C_p  (viscls+\frac{visct}{\sigma}) \cdot \grad{T}\cdot \vect{n} \]

  • For enthalpies $h$, in $ W.m^{-2} $:

    \[  rcodcl(ifac,ivar,3) =    (viscls+\frac{visct}{\sigma})  \cdot \grad{H} \cdot \vect{n} \]

zone = cs_boundary_zone_by_name("wall_5");
for (cs_lnum_t ilelt = 0; ilelt < zone->n_elts; ilelt++) {
cs_lnum_t face_id = zone->elt_ids[ilelt];
if (bc_type[face_id] == CS_SMOOTHWALL) {
/* log zone number */
izfrdp[face_id] = 55;
/* Type of condition: reflecting wall with fixed conduction
flux through the wall */
/* Conduction flux (W/m2)*/
f_th->bc_coeffs->rcodcl3[face_id] = 0.0;
}
}
@ CS_BOUNDARY_RAD_WALL_REFL_COND_FLUX
Definition: cs_rad_transfer.h:103

Absorption coefficient and net radiation flux

The absorption coefficient and the net radiation flux for the radiative module can be defined in cs_user_radiative_transfer.c through the cs_user_rad_transfer_absorption and Net radiation flux subroutines.

Absorption coefficient

The absorption coefficient is defined in cs_user_rad_transfer_absorption.

Computation of the absorption coefficient

/*
* Absorption coefficient of the medium (m-1).
*/
for (cs_lnum_t cell_id = 0; cell_id < cs_glob_mesh->n_cells; cell_id++)
ck[cell_id] = 0.;
cs_mesh_t * cs_glob_mesh
cs_lnum_t n_cells
Definition: cs_mesh.h:97

Net radiation flux

The net radiation flux is computed in Net radiation flux.

Local variables to be added

const double cs_physical_constants_stephan
Definition: cs_physical_constants.cpp:454
double precision stephn
Stephan constant for the radiative module in .
Definition: cstphy.f90:53

Initialization

At the end of the subroutine, if iok is different from zero, some faces have been forgotten and the calculation stops.

/* Initializations */
/* get BC coeffs for radiance (explicit part of the first band) */
cs_real_t *coefap = CS_FI_(radiance, 0)->bc_coeffs->a;
@ radiance
Definition: cs_field_pointer.h:175
#define CS_FI_(e, i)
Macro used to return a field pointer by its enumerated value.
Definition: cs_field_pointer.h:53

Computation of the net radiation flux

/* Net flux dendity for the boundary faces
* The provided examples are sufficient in most of cases.*/
/* If the boundary conditions given above have been modified
* it is necessary to change the way in which density is calculated from
* the net radiative flux consistently.*/
/* The rule is:
* the density of net flux is a balance between the emitting energy from a
* boundary face (and not the reflecting energy) and the absorbing radiative
* energy. Therefore if a wall heats the fluid by radiative transfer, the
* net flux is negative */
for (cs_lnum_t ifac = 0; ifac < cs_glob_mesh->n_b_faces; ifac++) {
/* Wall faces */
if ( bc_type[ifac] == CS_SMOOTHWALL
|| bc_type[ifac] == CS_ROUGHWALL)
net_flux[ifac] = eps[ifac] * (qincid[ifac] - stephn * pow(twall[ifac], 4));
/* Symmetry */
else if (bc_type[ifac] == CS_SYMMETRY)
net_flux[ifac] = 0.0;
/* Inlet/Outlet */
else if ( bc_type[ifac] == CS_INLET
|| bc_type[ifac] == CS_CONVECTIVE_INLET
|| bc_type[ifac] == CS_OUTLET
|| bc_type[ifac] == CS_FREE_INLET) {
net_flux[ifac] = qincid[ifac] - cs_math_pi * coefap[ifac];
net_flux[ifac] = 0.0;
}
/* Stop if there are forgotten faces */
else
(__FILE__, __LINE__, 0,
"In %s:\n"
" non-handled boundary faces for net flux calculation\n\n"
" Last face: %10ld; zone = %d; nature = %d\n",
__func__,
(long)ifac,
bc_type[ifac]);
}
void bft_error(const char *const file_name, const int line_num, const int sys_error_code, const char *const format,...)
Calls the error handler (set by bft_error_handler_set() or default).
Definition: bft_error.cpp:193
const int * cs_boundary_zone_face_zone_id(void)
Return pointer to zone id associated with each boundary face.
Definition: cs_boundary_zone.cpp:845
@ eps
Definition: cs_field_pointer.h:73
const cs_real_t cs_math_pi
@ CS_OUTLET
Definition: cs_parameters.h:86
@ CS_INLET
Definition: cs_parameters.h:85
@ CS_CONVECTIVE_INLET
Definition: cs_parameters.h:105
@ CS_FREE_INLET
Definition: cs_parameters.h:102
@ CS_SYMMETRY
Definition: cs_parameters.h:87
cs_rad_transfer_params_t * cs_glob_rad_transfer_params
@ CS_RAD_TRANSFER_P1
Definition: cs_rad_transfer.h:56
@ CS_RAD_TRANSFER_DOM
Definition: cs_rad_transfer.h:55
cs_lnum_t n_b_faces
Definition: cs_mesh.h:99
cs_rad_transfer_model_t type
Definition: cs_rad_transfer.h:134
