cs_internal_coupling.h File Reference
#include <ple_locator.h>
#include "cs_defs.h"
#include "cs_base.h"
#include "cs_matrix_assembler.h"
#include "cs_mesh.h"
#include "cs_parameters.h"

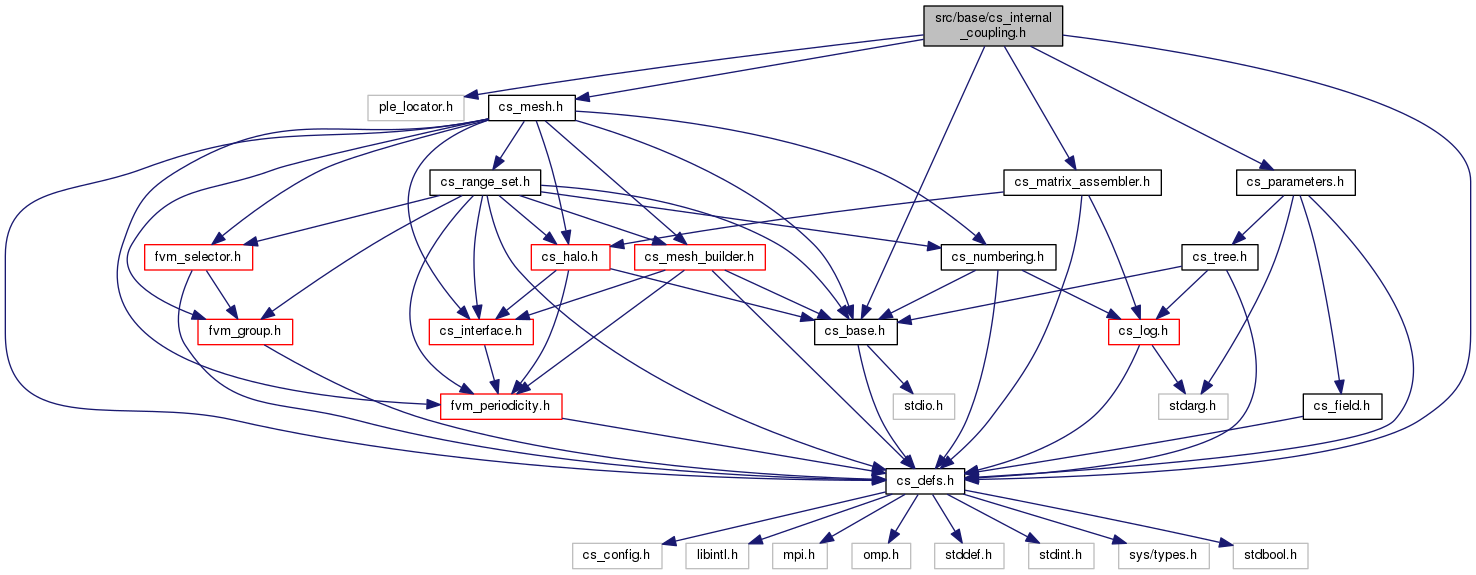

Include dependency graph for cs_internal_coupling.h:

Go to the source code of this file.

Data Structures

struct  cs_internal_coupling_t


Functions

int cs_internal_coupling_n_couplings (void)
 Return number of defined internal couplings. More...

void cs_internal_coupling_add (cs_mesh_t *mesh, const char criteria_cells[], const char criteria_faces[])
 Define coupling volume using given selection criteria. More...

void cs_internal_coupling_add_volume (cs_mesh_t *mesh, const char criteria_cells[])
 Define coupling volume using given criteria. Then, this volume will be separated from the rest of the domain with thin walls. More...

void cs_internal_coupling_bcs (int bc_type[])
 Impose wall BCs to internal coupled faces if not yet defined. More...

void cs_internal_coupling_finalize (void)
 Destruction of all internal coupling related structures. More...

cs_internal_coupling_t * cs_internal_coupling_by_id (int coupling_id)
 Return the coupling associated with a given coupling_id. More...

void cs_internal_coupling_exchange_var (const cs_internal_coupling_t *cpl, int stride, cs_real_t distant[], cs_real_t local[])
 Exchange quantities from distant to local (update local using distant). More...

void cs_internal_coupling_exchange_by_cell_id (const cs_internal_coupling_t *cpl, int stride, const cs_real_t tab[], cs_real_t local[])
 Exchange variable between groups using cell id. More...

void cs_internal_coupling_exchange_by_face_id (const cs_internal_coupling_t *cpl, int stride, const cs_real_t tab[], cs_real_t local[])
 Exchange variable between groups using face id. More...

void cs_internal_coupling_lsq_cocg_contribution (const cs_internal_coupling_t *cpl, cs_real_33_t cocg[])

void cs_internal_coupling_lsq_cocg_weighted (const cs_internal_coupling_t *cpl, const cs_real_t *c_weight, cs_real_33_t cocg[])

void cs_internal_coupling_it_cocg_contribution (const cs_internal_coupling_t *cpl, cs_real_33_t cocg[])

void cs_internal_coupling_setup (void)
 Setup internal coupling related parameters. More...

void cs_internal_coupling_initialize (void)
 Initialize internal coupling related structures. More...

void cs_internal_coupling_lsq_scalar_gradient (const cs_internal_coupling_t *cpl, const cs_real_t c_weight[], const int w_stride, cs_real_4_t rhsv[])
 Add internal coupling rhs contribution for LSQ gradient calculation. More...

void cs_internal_coupling_lsq_vector_gradient (const cs_internal_coupling_t *cpl, const cs_real_t c_weight[], const int w_stride, const cs_real_3_t pvar[], cs_real_33_t rhs[])
 Add internal coupling rhs contribution for LSQ gradient calculation. More...

void cs_internal_coupling_lsq_tensor_gradient (const cs_internal_coupling_t *cpl, const cs_real_t c_weight[], const int w_stride, const cs_real_6_t pvar[], cs_real_63_t rhs[])
 Add internal coupling rhs contribution for LSQ gradient calculation. More...

void cs_internal_coupling_iterative_scalar_gradient (const cs_internal_coupling_t *cpl, const cs_real_t c_weight[], cs_real_3_t *restrict grad, const cs_real_t pvar[], cs_real_3_t rhs[])
 Add internal coupling rhs contribution for iterative gradient calculation. More...

void cs_internal_coupling_iterative_vector_gradient (const cs_internal_coupling_t *cpl, const cs_real_t c_weight[], cs_real_33_t *restrict grad, const cs_real_3_t pvar[], cs_real_33_t rhs[])
 Add internal coupling rhs contribution for iterative vector gradient calculation. More...

void cs_internal_coupling_iterative_tensor_gradient (const cs_internal_coupling_t *cpl, const cs_real_t c_weight[], cs_real_63_t *restrict grad, const cs_real_6_t pvar[], cs_real_63_t rhs[])
 Add internal coupling rhs contribution for iterative tensor gradient calculation. More...

void cs_internal_coupling_reconstruct_scalar_gradient (const cs_internal_coupling_t *cpl, cs_real_3_t *restrict r_grad, cs_real_3_t grad[])
 Add internal coupling contribution for reconstruction of the gradient of a scalar. More...

void cs_internal_coupling_reconstruct_vector_gradient (const cs_internal_coupling_t *cpl, cs_real_33_t *restrict r_grad, cs_real_33_t grad[])
 Add internal coupling contribution for reconstruction of the gradient of a vector. More...

void cs_internal_coupling_reconstruct_tensor_gradient (const cs_internal_coupling_t *cpl, cs_real_63_t *restrict r_grad, cs_real_63_t grad[])
 Add internal coupling contribution for reconstruction of the gradient of a symmetric tensor. More...

void cs_internal_coupling_spmv_contribution (bool exclude_diag, const cs_field_t *f, const cs_real_t *restrict x, cs_real_t *restrict y)

void cs_internal_coupling_matrix_add_ids (int coupling_id, const cs_gnum_t *r_g_id, cs_matrix_assembler_t *ma)

void cs_internal_coupling_matrix_add_values (const cs_field_t *f, cs_lnum_t db_size, cs_lnum_t eb_size, const cs_gnum_t r_g_id[], cs_matrix_assembler_values_t *mav)

void cs_internal_coupling_coupled_faces (const cs_internal_coupling_t *cpl, cs_lnum_t *n_local, cs_lnum_t *faces_local[], cs_lnum_t *n_distant, cs_lnum_t *faces_distant[])

void cs_internal_coupling_log (const cs_internal_coupling_t *cpl)

void cs_internal_coupling_dump (void)

void cs_internal_coupling_preprocess (cs_mesh_t *mesh)

void cs_internal_coupling_map (cs_mesh_t *mesh)

void cs_internal_coupling_add_entity (int f_id)

void cs_internal_coupling_initialize_scalar_gradient (const cs_internal_coupling_t *cpl, const cs_real_t c_weight[], const cs_real_t pvar[], cs_real_3_t *restrict grad)
 Add contribution from coupled faces (internal coupling) to initialisation for iterative scalar gradient calculation. More...

void cs_internal_coupling_initialize_vector_gradient (const cs_internal_coupling_t *cpl, const cs_real_t c_weight[], const cs_real_3_t pvar[], cs_real_33_t *restrict grad)
 Add contribution from coupled faces (internal coupling) to initialisation for iterative vector gradient calculation. More...

void cs_internal_coupling_initialize_tensor_gradient (const cs_internal_coupling_t *cpl, const cs_real_t c_weight[], const cs_real_6_t pvar[], cs_real_63_t *restrict grad)
 Add contribution from coupled faces (internal coupling) to initialisation for iterative symmetric tensor gradient calculation. More...

void cs_ic_field_set_exchcoeff (const int field_id, const cs_real_t *hbnd)
 Update internal coupling coefficients of the field of the given id using given boundary exchange coefficients passed by face id. More...

void cs_ic_field_dist_data_by_face_id (const int field_id, int stride, const cs_real_t tab_distant[], cs_real_t tab_local[])
 Get distant data using face id at all coupling faces for a given field id. More...


Function Documentation

◆ cs_ic_field_dist_data_by_face_id()

void cs_ic_field_dist_data_by_face_id ( const int  field_id,
int  stride,
const cs_real_t  tab_distant[],
cs_real_t  tab_local[]
)

Get distant data using face id at all coupling faces for a given field id.

Parameters
[in]field_idfield id
[in]stridenumber of values (interlaced) by entity
[in]tab_distantexchanged data by face id
[out]tab_locallocal data by face id

◆ cs_ic_field_set_exchcoeff()

void cs_ic_field_set_exchcoeff ( const int  field_id,
const cs_real_t *  hbnd
)

Update internal coupling coefficients of the field of the given id using given boundary exchange coefficients passed by face id.

Parameters
[in]field_idfield id
[in]hbndboundary exchange coefficients passed by face id

◆ cs_internal_coupling_add()

void cs_internal_coupling_add ( cs_mesh_t *  mesh,
const char  criteria_cells[],
const char  criteria_faces[]
)

Define coupling volume using given selection criteria.

Then, this volume must be seperated from the rest of the domain with a wall.

Parameters
[in,out]meshpointer to mesh structure to modify
[in]criteria_cellscriteria for the first group of cells
[in]criteria_facescriteria for faces to be joined

◆ cs_internal_coupling_add_entity()

void cs_internal_coupling_add_entity ( int  f_id)

◆ cs_internal_coupling_add_volume()

void cs_internal_coupling_add_volume ( cs_mesh_t *  mesh,
const char  criteria_cells[]
)

Define coupling volume using given criteria. Then, this volume will be separated from the rest of the domain with thin walls.

Parameters
[in,out]meshpointer to mesh structure to modify
[in]criteria_cellscriteria for the first group of cells

◆ cs_internal_coupling_bcs()

void cs_internal_coupling_bcs ( int  bc_type[])

Impose wall BCs to internal coupled faces if not yet defined.

Parameters
[in,out]bc_typeface boundary condition type

◆ cs_internal_coupling_by_id()

cs_internal_coupling_t* cs_internal_coupling_by_id ( int  coupling_id)

Return the coupling associated with a given coupling_id.

Parameters
[in]coupling_idassociated with a coupling entity
Returns
pointer to associated coupling structure

◆ cs_internal_coupling_coupled_faces()

void cs_internal_coupling_coupled_faces ( const cs_internal_coupling_t *  cpl,
cs_lnum_t *  n_local,
cs_lnum_t *  faces_local[],
cs_lnum_t *  n_distant,
cs_lnum_t *  faces_distant[]
)

◆ cs_internal_coupling_dump()

void cs_internal_coupling_dump ( void  )

◆ cs_internal_coupling_exchange_by_cell_id()

void cs_internal_coupling_exchange_by_cell_id ( const cs_internal_coupling_t *  cpl,
int  stride,
const cs_real_t  tab[],
cs_real_t  local[]
)

Exchange variable between groups using cell id.

Parameters
[in]cplpointer to coupling entity
[in]stridenumber of values (non interlaced) by entity
[in]tabvariable exchanged
[out]locallocal data

◆ cs_internal_coupling_exchange_by_face_id()

void cs_internal_coupling_exchange_by_face_id ( const cs_internal_coupling_t *  cpl,
int  stride,
const cs_real_t  tab[],
cs_real_t  local[]
)

Exchange variable between groups using face id.

Parameters
[in]cplpointer to coupling entity
[in]stridenumber of values (non interlaced) by entity
[in]tabvariable exchanged
[out]locallocal data

◆ cs_internal_coupling_exchange_var()

void cs_internal_coupling_exchange_var ( const cs_internal_coupling_t *  cpl,
int  stride,
cs_real_t  distant[],
cs_real_t  local[]
)

Exchange quantities from distant to local (update local using distant).

Parameters
[in]cplpointer to coupling entity
[in]stridestride (e.g. 1 for double, 3 for interleaved coordinates)
[in]distantdistant values, size coupling->n_distant
[out]locallocal values, size coupling->n_local

◆ cs_internal_coupling_finalize()

void cs_internal_coupling_finalize ( void  )

Destruction of all internal coupling related structures.

◆ cs_internal_coupling_initialize()

void cs_internal_coupling_initialize ( void  )

Initialize internal coupling related structures.

◆ cs_internal_coupling_initialize_scalar_gradient()

void cs_internal_coupling_initialize_scalar_gradient ( const cs_internal_coupling_t *  cpl,
const cs_real_t  c_weight[],
const cs_real_t  pvar[],
cs_real_3_t *restrict  grad
)

Add contribution from coupled faces (internal coupling) to initialisation for iterative scalar gradient calculation.

Parameters
[in]cplpointer to coupling entity
[in]c_weightweighted gradient coefficient variable, or NULL
[in]pvarvariable
[in,out]gradgradient

◆ cs_internal_coupling_initialize_tensor_gradient()

void cs_internal_coupling_initialize_tensor_gradient ( const cs_internal_coupling_t *  cpl,
const cs_real_t  c_weight[],
const cs_real_6_t  pvar[],
cs_real_63_t *restrict  grad
)

Add contribution from coupled faces (internal coupling) to initialisation for iterative symmetric tensor gradient calculation.

Parameters
[in]cplpointer to coupling entity
[in]c_weightweighted gradient coefficient variable, or NULL
[in,out]pvarvariable
[in,out]gradgradient

◆ cs_internal_coupling_initialize_vector_gradient()

void cs_internal_coupling_initialize_vector_gradient ( const cs_internal_coupling_t *  cpl,
const cs_real_t  c_weight[],
const cs_real_3_t  pvar[],
cs_real_33_t *restrict  grad
)

Add contribution from coupled faces (internal coupling) to initialisation for iterative vector gradient calculation.

Parameters
[in]cplpointer to coupling entity
[in]c_weightweighted gradient coefficient variable, or NULL
[in]pvarvariable
[in,out]gradgradient

◆ cs_internal_coupling_it_cocg_contribution()

void cs_internal_coupling_it_cocg_contribution ( const cs_internal_coupling_t *  cpl,
cs_real_33_t  cocg[]
)

◆ cs_internal_coupling_iterative_scalar_gradient()

void cs_internal_coupling_iterative_scalar_gradient ( const cs_internal_coupling_t *  cpl,
const cs_real_t  c_weight[],
cs_real_3_t *restrict  grad,
const cs_real_t  pvar[],
cs_real_3_t  rhs[]
)

Add internal coupling rhs contribution for iterative gradient calculation.

Parameters
[in]cplpointer to coupling entity
[in]c_weightweighted gradient coefficient variable, or NULL
[in]gradpointer to gradient
[in]pvarpointer to variable
[in,out]rhspointer to rhs contribution

◆ cs_internal_coupling_iterative_tensor_gradient()

void cs_internal_coupling_iterative_tensor_gradient ( const cs_internal_coupling_t *  cpl,
const cs_real_t  c_weight[],
cs_real_63_t *restrict  grad,
const cs_real_6_t  pvar[],
cs_real_63_t  rhs[]
)

Add internal coupling rhs contribution for iterative tensor gradient calculation.

Parameters
[in]cplpointer to coupling entity
[in]c_weightweighted gradient coefficient variable, or NULL
[in]gradpointer to gradient
[in]pvarpointer to variable
[in,out]rhspointer to rhs contribution

◆ cs_internal_coupling_iterative_vector_gradient()

void cs_internal_coupling_iterative_vector_gradient ( const cs_internal_coupling_t *  cpl,
const cs_real_t  c_weight[],
cs_real_33_t *restrict  grad,
const cs_real_3_t  pvar[],
cs_real_33_t  rhs[]
)

Add internal coupling rhs contribution for iterative vector gradient calculation.

Parameters
[in]cplpointer to coupling entity
[in]c_weightweighted gradient coefficient variable, or NULL
[in]gradpointer to gradient
[in]pvarpointer to variable
[in,out]rhspointer to rhs contribution

◆ cs_internal_coupling_log()

void cs_internal_coupling_log ( const cs_internal_coupling_t *  cpl)

◆ cs_internal_coupling_lsq_cocg_contribution()

void cs_internal_coupling_lsq_cocg_contribution ( const cs_internal_coupling_t *  cpl,
cs_real_33_t  cocg[]
)

◆ cs_internal_coupling_lsq_cocg_weighted()

void cs_internal_coupling_lsq_cocg_weighted ( const cs_internal_coupling_t *  cpl,
const cs_real_t *  c_weight,
cs_real_33_t  cocg[]
)

◆ cs_internal_coupling_lsq_scalar_gradient()

void cs_internal_coupling_lsq_scalar_gradient ( const cs_internal_coupling_t *  cpl,
const cs_real_t  c_weight[],
const int  w_stride,
cs_real_4_t  rhsv[]
)

Add internal coupling rhs contribution for LSQ gradient calculation.

Parameters
[in]cplpointer to coupling entity
[in]c_weightweighted gradient coefficient variable, or NULL
[in]w_stridestride of weighting coefficient
[in,out]rhsvpointer to rhs contribution

◆ cs_internal_coupling_lsq_tensor_gradient()

void cs_internal_coupling_lsq_tensor_gradient ( const cs_internal_coupling_t *  cpl,
const cs_real_t  c_weight[],
const int  w_stride,
const cs_real_6_t  pvar[],
cs_real_63_t  rhs[]
)

Add internal coupling rhs contribution for LSQ gradient calculation.

Parameters
[in]cplpointer to coupling entity
[in]c_weightweighted gradient coefficient variable, or NULL
[in]w_stridestride of weighting coefficient
[in]pvarpointer to variable
[in,out]rhspointer to rhs contribution

◆ cs_internal_coupling_lsq_vector_gradient()

void cs_internal_coupling_lsq_vector_gradient ( const cs_internal_coupling_t *  cpl,
const cs_real_t  c_weight[],
const int  w_stride,
const cs_real_3_t  pvar[],
cs_real_33_t  rhs[]
)

Add internal coupling rhs contribution for LSQ gradient calculation.

Parameters
[in]cplpointer to coupling entity
[in]c_weightweighted gradient coefficient variable, or NULL
[in]w_stridestride of weighting coefficient
[in]pvarpointer to variable
[in,out]rhspointer to rhs contribution

◆ cs_internal_coupling_map()

void cs_internal_coupling_map ( cs_mesh_t *  mesh)

◆ cs_internal_coupling_matrix_add_ids()

void cs_internal_coupling_matrix_add_ids ( int  coupling_id,
const cs_gnum_t *  r_g_id,
cs_matrix_assembler_t *  ma
)

◆ cs_internal_coupling_matrix_add_values()

void cs_internal_coupling_matrix_add_values ( const cs_field_t *  f,
cs_lnum_t  db_size,
cs_lnum_t  eb_size,
const cs_gnum_t  r_g_id[],
cs_matrix_assembler_values_t *  mav
)

◆ cs_internal_coupling_n_couplings()

int cs_internal_coupling_n_couplings ( void  )

Return number of defined internal couplings.

Returns
number of internal couplings

◆ cs_internal_coupling_preprocess()

void cs_internal_coupling_preprocess ( cs_mesh_t *  mesh)

◆ cs_internal_coupling_reconstruct_scalar_gradient()

void cs_internal_coupling_reconstruct_scalar_gradient ( const cs_internal_coupling_t *  cpl,
cs_real_3_t *restrict  r_grad,
cs_real_3_t  grad[]
)

Add internal coupling contribution for reconstruction of the gradient of a scalar.

Parameters
[in]cplpointer to coupling entity
[in]r_gradpointer to reconstruction gradient
[in,out]gradpointer to gradient to be reconstructed var

◆ cs_internal_coupling_reconstruct_tensor_gradient()

void cs_internal_coupling_reconstruct_tensor_gradient ( const cs_internal_coupling_t *  cpl,
cs_real_63_t *restrict  r_grad,
cs_real_63_t  grad[]
)

Add internal coupling contribution for reconstruction of the gradient of a symmetric tensor.

Parameters
[in]cplpointer to coupling entity
[in]r_gradpointer to reconstruction gradient
[in,out]gradpointer to gradient to be reconstructed var

◆ cs_internal_coupling_reconstruct_vector_gradient()

void cs_internal_coupling_reconstruct_vector_gradient ( const cs_internal_coupling_t *  cpl,
cs_real_33_t *restrict  r_grad,
cs_real_33_t  grad[]
)

Add internal coupling contribution for reconstruction of the gradient of a vector.

Parameters
[in]cplpointer to coupling entity
[in]r_gradpointer to reconstruction gradient
[in,out]gradpointer to gradient to be reconstructed var

◆ cs_internal_coupling_setup()

void cs_internal_coupling_setup ( void  )

Setup internal coupling related parameters.

◆ cs_internal_coupling_spmv_contribution()

void cs_internal_coupling_spmv_contribution ( bool  exclude_diag,
const cs_field_t *  f,
const cs_real_t *restrict  x,
cs_real_t *restrict  y
)
Generated on Tue Sep 24 2019 16:18:06 by   doxygen 1.8.13
