About adding boundary layer to the mesh

Questions and remarks about code_saturne usage
Forum rules
Please read the forum usage recommendations before posting.
Post Reply
Jundi He
Posts: 106
Joined: Fri Jan 13, 2017 3:23 pm

About adding boundary layer to the mesh

Post by Jundi He »

Hi Code Saturne team:

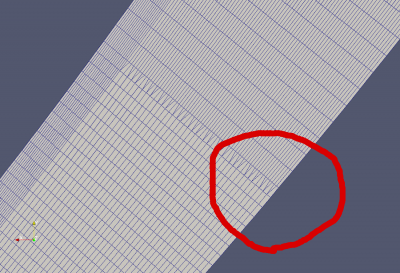

I've got an issue about my mesh, in the red circle position, the division of the mesh changed by using triangles. But the y plus value in this location has a step change, the best way to avoid this is to add a boundary layer in this location, do Code Saturne 5 has this function, to add a few layers of mesh at the wall, to make sure there is no step change of y plus values at the wall.

Regards!
Jundi
Screenshot from 2018-10-24 16-19-00.png
Luciano Garelli
Posts: 280
Joined: Fri Dec 04, 2015 1:42 pm

Re: About adding boundary layer to the mesh

Post by Luciano Garelli »

Hello,

I think that this feature is available at the master branch or the 5.2.0 version of the code as I read in the NEWS file. Why not to do it in Salome with the same strategy as the left boundary of the mesh?

Regards,

Luciano
Jundi He
Posts: 106
Joined: Fri Jan 13, 2017 3:23 pm

Re: About adding boundary layer to the mesh

Post by Jundi He »

Hi Luciano Garelli:

For the left part, it's the ribs, this is a top view of the channel, so the ribs are not shown. If I use Code Saturne 5.2.0, can the code generate a boundary layer near the wall? Thanks!

Regards!
Jundi
Luciano Garelli
Posts: 280
Joined: Fri Dec 04, 2015 1:42 pm

Re: About adding boundary layer to the mesh

Post by Luciano Garelli »

Hello,

I just read in the NEWS file of the master branch this
"Added boundary layer insertion at selected faces, using a mesh deformation (CDO vertex-based), followed by boundary layer extrusion.". I have no test this feature. You can download CS from the master branch and test it.

Why not use Salome?

Regards,

Luciano
Jundi He
Posts: 106
Joined: Fri Jan 13, 2017 3:23 pm

Re: About adding boundary layer to the mesh

Post by Jundi He »

Hi Luciano Garelli:

We have install Code Saturne 5.2.1, but we can't see any option to add a additional boundary layer to the wall, could you simply show us how to do it? Many thanks!

Regards!
Jundi
Luciano Garelli
Posts: 280
Joined: Fri Dec 04, 2015 1:42 pm

Re: About adding boundary layer to the mesh

Post by Luciano Garelli »

Hello,

I have not used this feature, but searching in the source code I found the file cs_user_mesh-modify.c file inside of the example directory.

Inside of this file there is an example "Insert boundary layers on selected zones.", I think that this example can help you.

Regards,

Luciano
