Particle-tracking module

Some features:
  • Simulation of polydispersed particle-laden turbulent flows
  • Moments/PDF (Euler/Lagrange) approach
  • Frozen-field, one-way or two-way coupling simulation
  • Dedicated models for droplet evaporation, particle heat transfer and particle deposition





This is a demo case in order to illustrate the behavior of particles after an impact. The particles or colored based on their resident time.

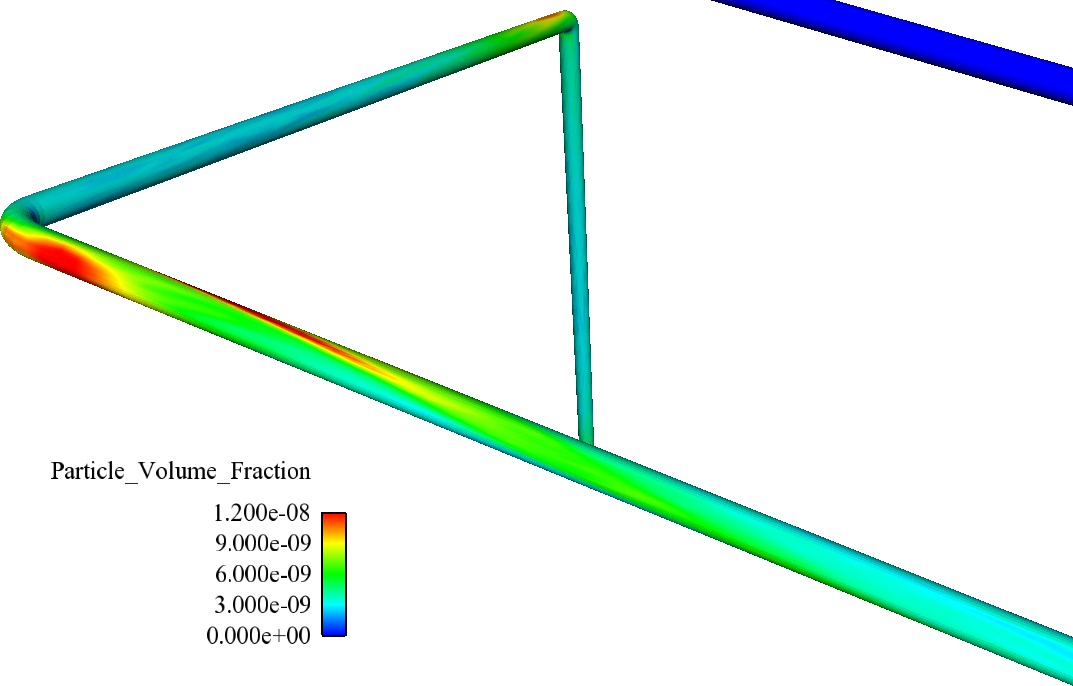

Near-wall particle concentration, after 2 elbows, in a turbulent pipe flow.





Examples of particles trajectories after a bend in a turbulent pipe flow.





Cyclone separators, particle deposition, impact phenomena.
